After following the process outlined at https://www.adaxes.com/help/ConfigureMailSettings/#exchange-app-auth, I enter in the smtp server, port 587, the server requires authentication, Microsoft Entra App credentails, Application (client) id, Directory (tenant) id and client secret. When I try to click Ok or Test Settings, the admin console hangs and eventually crashes. I am confident I have the service princiapl setup with the permissions correctly.

Is there anywhere I can troubleshoot or see a log of what is causing the console to crash? I checked the event viewer, nothing. Checked the adaxes logging, nothing.

Any help is apprecaited. Thank you!

by (160 points)
by (305k points)
0

Hello,

For troubleshooting purposes, please, provide a screenshot of the mail settings you configured. Also, please, provide us with a screenshot of the Multi-server environment dialog. The dialog displays how many Adaxes services you have and what their versions are. For information on how to view it, see https://www.adaxes.com/help/MultiServerEnvironment. You can post the screenshots here or send to us at support@adaxes.com.

by (160 points)
0

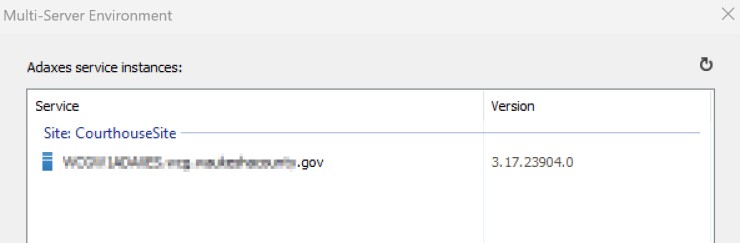

We have a single Adaxes service running. image.png

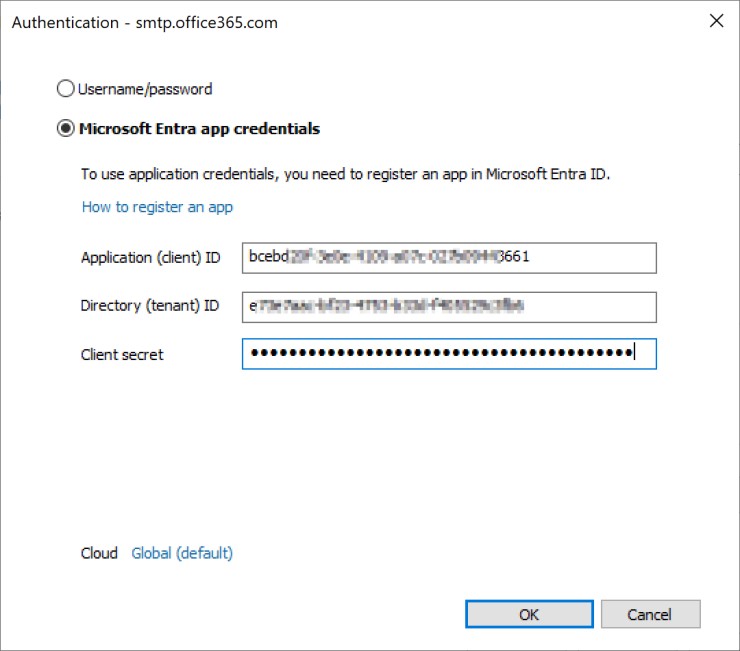

Here is the app credentails setup. image.png

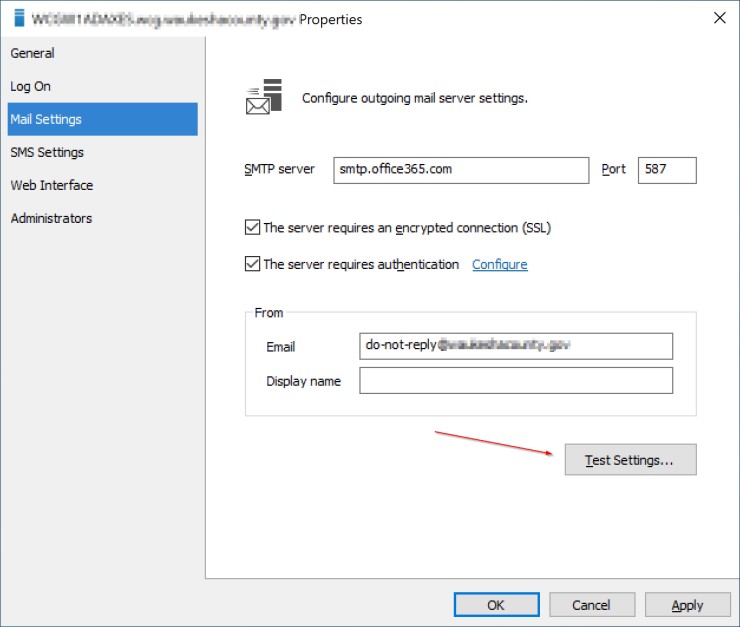

Here are the mail settings image.png

When I ran the PowerShell from the reference link, I made sure to give the service principal full access to the do-not-reply mailbox and ensure that the mailbox is licensed. When I click the "test settings" or ok, that is when the console crashes and the settings do not save. I have tried with the SSL setting check and unchecked. Results were the same.

I have been able to verify the sucessful login using the client secret with the service principal in Entra id logs.

by (305k points)
0

Hello,

For troubleshooting purposes, please, try setting mail settings using the below script. If it completes with the Mail settings not saved message, please, send us (support@adaxes.com) the output file. If the script is executed successfully, try testing the mail settings in the Administration console. The script should be executed in PowerShell 7 on the computer where Adaxes service runs. In the script:

  • $reportFilePath – the path to a text file that will be created by the script in case of any issue saving mail settings.
  • $clientId - the Application (client) ID of the Microsoft Entra app.
  • $tenantId - the Directory (tenant) ID of the Microsoft Entra app.
  • $clientSecret - the client secret of the Microsoft Entra app.
  • $from - the From address you used in mail settings (starts with do-not-reply according to your screenshot).
Import-Module Adaxes

$reportFilePath = "C:\Scripts\Report.txt" # TODO: modify me
$clientId = "<clientId>" # TODO: modify me
$tenantId = "<tenantId>" # TODO: modify me
$clientSecret = "<clientSecret>" # TODO: modify me
$from = "<from>" # TODO: modify me

$smptServer = "smtp.office365.com"
$port = "587"

# Connect to the Adaxes service.
$ns = New-Object "Softerra.Adaxes.Adsi.AdmNamespace"
$service = $ns.GetServiceDirectly("localhost")

# Bind to the Service Settings container.
$wellknownContainerPath = $service.Backend.GetConfigurationContainerPath("ServiceSettings")
$serviceSettings = $service.OpenObject($wellknownContainerPath, $null, $null, 0)

# Get mail settings
$mailSettings = $serviceSettings.MailSettings

# Set MailSettings
$mailSettings.Host = $smptServer
$mailSettings.Port = $port
$mailSettings.From = $from

# Create the credentials object.
$credentials = New-Object "Softerra.Adaxes.Management.AdmSmtpEntraIdAuth"
$credentials.ClientId = $clientId
$credentials.TenantId = $tenantId
$credentials.ClientSecret = $clientSecret

# Set credentials.
$mailSettings.SmtpAuth = $credentials

$validationErrors = @()
try
{
    $mailSettings.ValidateAuthentication($credentials)
}
catch
{
    $validationErrors += "ValidateAuthentication: " + $_.Exception.Message
}

try
{
    $mailSettings.ValidateSmtpServer($smptServer, $port)
}
catch
{
    $validationErrors += "ValidateSmtpServer: " + $_.Exception.Message
}

try
{
    $mailSettings.ValidateFromMail($from)
}
catch
{
    $validationErrors += "ValidateFromMail: " + $_.Exception.Message
}

if ($validationErrors.Length -gt 0)
{
    $validationErrors | %{$_ | Out-File $reportFilePath -Append}
    Write-Warning "Mail settings not saved. See $reportFilePath."
    return
}

# Save changes
$mailSettings.Save()
Write-Host "Mail settings saved successfully." -ForegroundColor Green
